Custom Tooltip Widget

Fully customize tooltip appearance and interaction behavior. You can create custom tooltip appearance and behavior by implementing the ILayeredTooltipWidget interface.

Implementing the Interface

Blueprint Implementation:

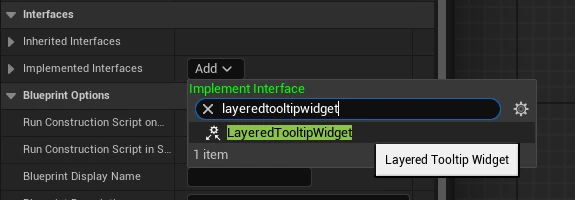

• Add the ILayeredTooltipWidget interface in Class Settings → Interfaces → Implemented Interfaces

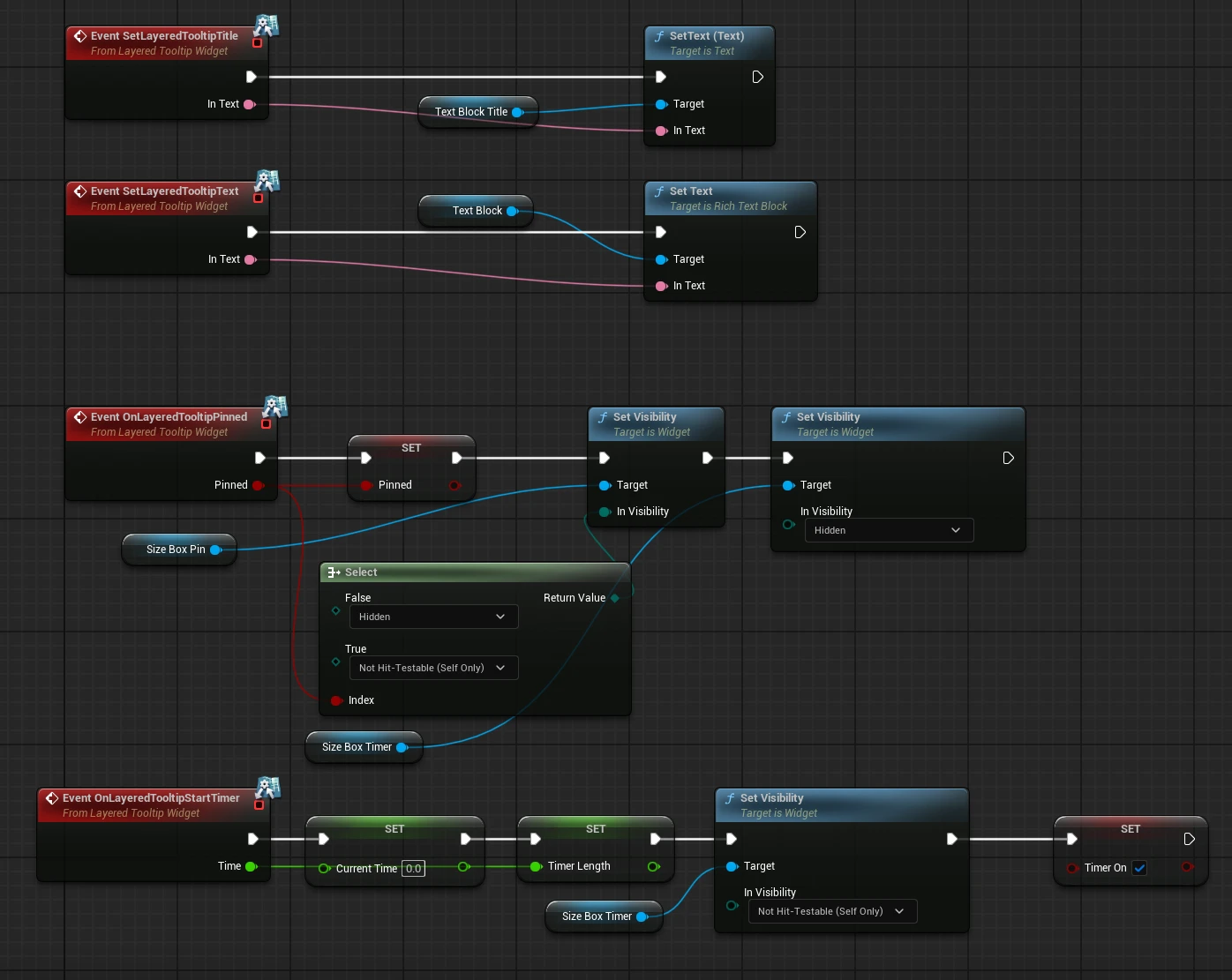

• Implement each interface function in Blueprint

C++ Implementation:

UCLASS()
class UMyCustomTooltipWidget : public UUserWidget, public ILayeredTooltipWidget
{
    GENERATED_BODY()
public:
    // Required implementation
    virtual void InitializeLayeredTooltip_Implementation(const FLayeredToolTipTriggerData& TriggerData) override;
    virtual void SetLayeredTooltipTitle_Implementation(const FText& InText) override;
    virtual void SetLayeredTooltipText_Implementation(const FText& InText) override;
    virtual FOnTooltipDestroyDelegate& GetOnTooltipDestroyDelegate() override;

    // Optional implementation
    virtual void OnLayeredTooltipPinned_Implementation(bool bPinned) override;
    virtual void OnLayeredTooltipStartTimer_Implementation(float Time) override;
    virtual void OnLayeredTooltipStopTimer_Implementation() override;

private:
    FOnTooltipDestroyDelegate OnTooltipDestroy;
};

Advanced Initialization

Payload-Based Dynamic Configuration:

void UMyCustomTooltipWidget::InitializeLayeredTooltip_Implementation(const FLayeredToolTipTriggerData& TriggerData)
{
    // Change layout based on metadata
    FString Type = TriggerData.TooltipData.FindRef("Type");
    ConfigureLayoutForType(Type);

    // Process complex data through payload
    if (TriggerData.TriggerPayload)
    {
        ProcessPayloadData(TriggerData.TriggerPayload);
    }
}

void UMyCustomTooltipWidget::ProcessPayloadData(UObject* Payload)
{
    if (UItemData* Item = Cast<UItemData>(Payload))
    {
        // Display real-time item information
        UpdateItemStats(Item);
        BuildDynamicContent(Item);
    }
    else if (ACharacter* Character = Cast<ACharacter>(Payload))
    {
        // Monitor character status in real-time
        MonitorCharacterStats(Character);
    }
}

Pin State Management

Interactive Element Control:

void UMyCustomTooltipWidget::OnLayeredTooltipPinned_Implementation(bool bPinned)
{
    if (bPinned)
    {
        // Advanced features shown only when pinned
        DetailedInfoPanel->SetVisibility(ESlateVisibility::Visible);
        InteractiveButtons->SetVisibility(ESlateVisibility::Visible);

        // Start real-time updates
        StartRealtimeUpdates();
    }
    else
    {
        StopRealtimeUpdates();
        DetailedInfoPanel->SetVisibility(ESlateVisibility::Hidden);
    }
}

Custom Timer UI:

void UMyCustomTooltipWidget::OnLayeredTooltipStartTimer_Implementation(float Time)
{
    // Custom timer animation
    if (TimerWidget)
    {
        TimerWidget->StartCountdown(Time);
    }

    // Visual feedback
    PlayTimerStartEffect();
}

Nested Tooltip Support

Dynamic Rich Text Configuration:

void UMyCustomTooltipWidget::NativeConstruct()
{
    Super::NativeConstruct();

    // Add decorators to all rich text blocks
    TArray<UWidget*> AllWidgets;
    WidgetTree->GetAllWidgets(AllWidgets);

    for (UWidget* Widget : AllWidgets)
    {
        if (URichTextBlock* RichText = Cast<URichTextBlock>(Widget))
        {
            RichText->SetDecorators({ULayeredTooltipDecorator::StaticClass()});
        }
    }
}

Register in Plugin Settings

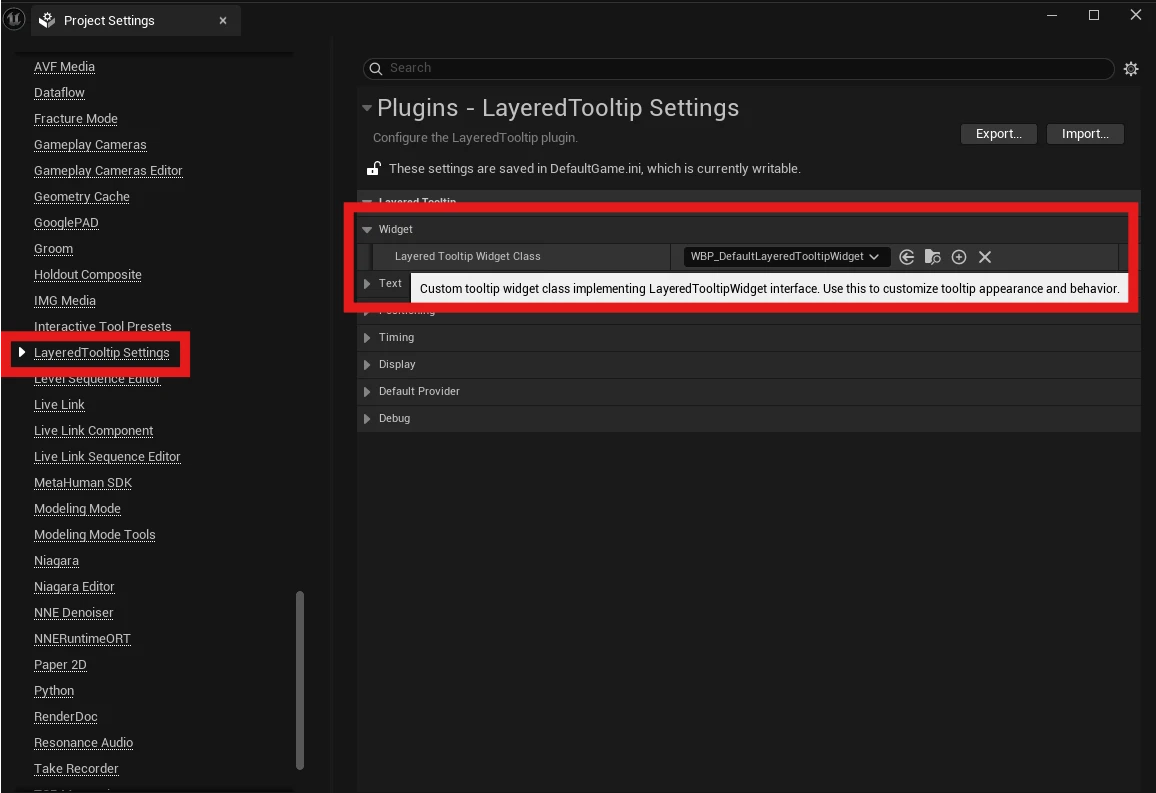

Set your custom widget class in Project Settings → Plugins → LayeredTooltip Settings → Layered Tooltip Widget Class.
